BESS commissioning and testing is one of the most technically demanding phases of any battery energy storage project. When the BESS is integrated with a tidal power system, the complexity increases significantly: the marine environment, the cyclic nature of tidal generation, and the need to synchronise storage dispatch with tidal windows all introduce challenges not present in standard grid-scale deployments.
This guide walks through the five phases of BESS commissioning and testing for tidal power projects — from initial pre-commissioning checks to final performance acceptance — giving engineers and project managers a clear, structured framework to follow.

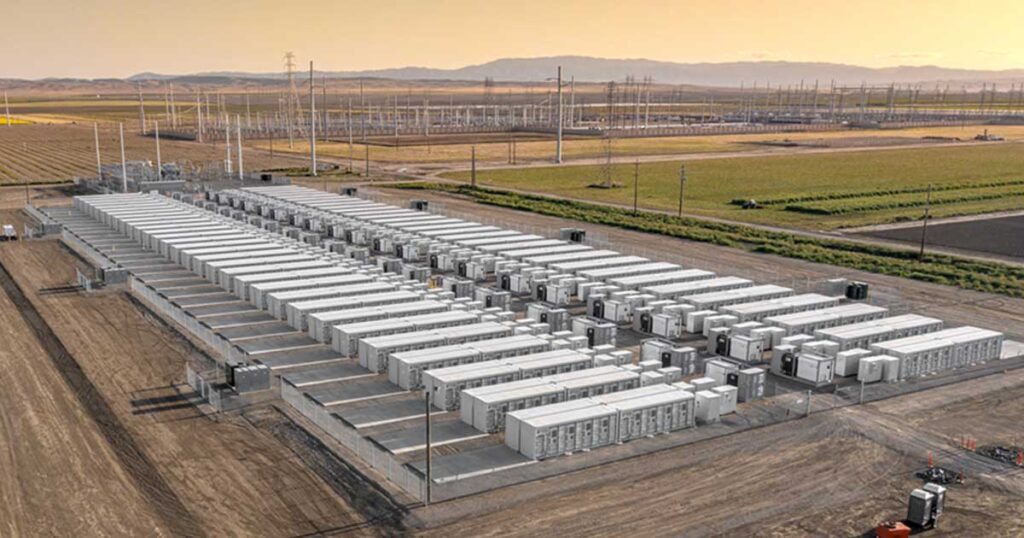

What Is BESS Commissioning and Testing?
BESS commissioning and testing is the process of systematically verifying that a battery energy storage system has been correctly installed, configured, and integrated — and that it performs to the specification required before handover to the owner or grid operator. It involves a structured sequence of electrical checks, protection testing, control system validation, and performance demonstration.
For tidal BESS projects, the commissioning scope also includes verifying the interface with tidal turbine controllers, the tidal generation forecasting logic built into the energy management system (EMS), and — in many cases — islanded or microgrid operating modes.
Phase 1: Pre-Commissioning (Cold Checks)
Before any power is applied, the pre-commissioning phase verifies that all equipment is correctly installed and that documentation reflects the as-built state of the system.
Documentation review
Confirm that all design drawings — single-line diagrams, protection coordination studies, relay settings files, and cable schedules — are as-built and correctly stamped. For tidal projects, pay close attention to the tidal turbine interface specifications and the generation forecasting model used by the EMS.
Physical inspection
- Inspect all battery modules, racks, and containers for shipping damage, moisture ingress, and correct torque on bus bar connections.
- Verify BMS wiring and fibre communications to the main controller.
- Check all DC breaker ratings, fuse coordination, and manual isolation positions.
- Inspect AC switchgear, transformers, and grid connection equipment.
- Confirm all containment, fire suppression, and HVAC systems are operational — critical in marine environments where salt-laden air accelerates corrosion.
Insulation resistance testing
Megger all cable runs — both AC and DC — to confirm no moisture-induced insulation breakdown. Tidal environments place exceptional demands on insulation integrity. Any compromised cable must be replaced before energization.
CT/PT polarity and ratio checks
Verify all current transformers (CTs) and potential transformers (PTs) are correctly phased and calibrated. Errors at this stage cause protection relay misoperation and can result in catastrophic equipment damage during fault conditions.
Protection relay injection testing
Inject secondary test currents and voltages into every protection relay — overcurrent, differential, distance, loss-of-mains, and anti-islanding — to verify pickup values, time-delay curves, and trip output contacts. This is one of the most critical steps in the BESS commissioning and testing process.
Communication checks
Verify all SCADA/EMS communications paths — Modbus, IEC 61850, DNP3, or whichever protocols are specified — are live and returning data. Confirm the EMS can read BMS cell voltages, temperatures, state of charge (SOC), and state of health (SOH).
Phase 2: Energization Sequence
The energization sequence introduces power to the system incrementally, with hold-point checks at each step before proceeding.
- Auxiliary power first: Energize low-voltage auxiliary supplies (control, HVAC, fire suppression, lighting) and verify all auxiliary loads power up correctly.
- BMS power-up: Power up the BMS without connecting battery strings to the main DC bus. Confirm all cell monitoring is live and all string isolation contactors are open.
- Battery string pre-charge: Follow the OEM pre-charge procedure to limit inrush current when the DC capacitance of the converters is first charged. Measure DC bus voltage rise and confirm it settles correctly.
- LV/MV switchgear energization: Close breakers in sequence from the grid side inward, confirming phase rotation, voltage levels, and relay healthy indications at each step.
- Transformer energization: Monitor for magnetizing inrush current (typically 6-10x rated current for the first few cycles) and confirm protection relays do not false-trip.
Phase 3: Functional Testing at Equipment Level
With the system energized but before connecting to the live grid or tidal turbines, functional testing verifies that each subsystem operates correctly in isolation.
Battery charge and discharge cycles
Perform controlled charge and discharge cycles at low power (typically 10-25% rated) to verify the power conversion system (PCS) responds to setpoints, BMS protection limits are correctly enforced, and thermal management responds appropriately.
PCS control loop verification
Verify the PCS responds correctly to active power (P) and reactive power (Q) setpoints. Check ramp rate limiting, frequency droop response, and voltage regulation modes.
EMS/BMS interface testing
Verify the EMS correctly reads all BMS parameters and that EMS commands — charge, discharge, hold, emergency stop — are correctly executed. Test all alarm and trip propagation paths end-to-end.
Fire and safety system testing
Test all fire detection zones, suppression system activation (in test mode), emergency stop buttons, and interlocks. All safety systems must be fully proven before the BESS is operated at full power.
Phase 4: Integration Testing — The Tidal Interface
This is the phase where BESS commissioning and testing for tidal projects differs most significantly from standard grid-scale BESS. The system must be proven to operate correctly within the context of the predictable but cyclic tidal generation profile.
Tidal turbine interface testing
Verify the communication interface between the tidal turbines (or tidal turbine controller) and the BESS EMS. The EMS requires real-time generation data to coordinate storage dispatch effectively.
Generation forecasting integration
Tidal power is highly predictable — governed by lunar cycles — so the EMS should include a tidal generation forecast engine. Verify that forecast data loads correctly and that the EMS charging and discharging schedule aligns with predicted tidal windows.
Grid code compliance testing
Test frequency response (FFR/PFR), voltage regulation, and power factor correction to confirm compliance with the applicable grid code. For island or microgrid tidal projects, also test black start capability and islanded operation modes.
Energy management strategy testing
Simulate multiple tidal cycles — typically the 12.4-hour lunar tidal cycle — using hardware-in-the-loop or software simulation to verify the EMS charging strategy optimally fills the BESS during peak tidal generation and dispatches correctly during low or no generation periods.
Anti-islanding and loss-of-grid testing
Disconnect the grid supply and verify the system correctly detects loss of grid, issues appropriate alarms and trips, and — where islanded operation is specified — seamlessly transfers to island mode without interruption to connected loads.
Phase 5: Performance Acceptance Testing
The final phase of BESS commissioning and testing is a formal demonstration to the owner, operator, and grid operator that the system meets its contractual performance requirements.
Capacity test
Fully charge the BESS to 100% SOC, then discharge at rated power to the minimum SOC cutoff. Measure actual energy throughput and compare to nameplate capacity. A typical acceptance criterion is 95% or greater of rated capacity.
Round-trip efficiency test
Measure AC energy in during a full charge cycle and AC energy out during a full discharge cycle. Modern lithium-ion BESS systems typically achieve 85-92% round-trip efficiency.
Response time test
Issue a step change in power setpoint and measure the time from command to 90% of setpoint power delivery. Grid-scale BESS systems are typically required to respond within 200ms to 2 seconds, depending on the contract.
Ramp rate test
Verify the system can ramp from 0 to 100% rated power at the specified ramp rate without tripping any protection functions.
Tidal cycle simulation test
Run a full tidal cycle — real or time-accelerated — and verify the EMS correctly manages SOC throughout, prevents over-charge and over-discharge, and delivers the contracted power profile.
Data and reporting
Confirm the SCADA data historian is logging all key parameters, all alarm and event logs are correct, and the as-built documentation pack is complete and signed off.
Key Differences: Tidal BESS vs Standard Grid-Scale BESS Commissioning
Engineers familiar with standard grid-scale BESS commissioning and testing will encounter several additional considerations when working on tidal projects:
- Marine environment: Salt-laden air demands enhanced inspection frequency and more conservative insulation testing thresholds. Equipment ratings and IP/NEMA classifications must be verified for the specific marine exposure classification.
- Tidal-cycle-aware EMS: Unlike price-signal-driven grid BESS dispatch, tidal BESS optimization is built around the 12.4-hour lunar tidal cycle. EMS logic and testing must reflect this.
- Remote and offshore locations: Communication redundancy and autonomous fault response are more critical. Manual intervention is often slow or impractical — the system must handle more scenarios autonomously.
- Battery cycling profile: Deep, regular cycles tied to tidal periods must be factored into the battery warranty, degradation model, and state-of-health monitoring strategy from day one.
- Corrosion and IP testing: All enclosures, connectors, and cable glands must be inspected against their rated IP/NEMA class, with additional scrutiny in salt-spray exposure zones.
Conclusion
Successful BESS commissioning and testing for tidal power projects requires a disciplined, phased approach — starting from thorough cold checks and working through energization, functional testing, tidal integration, and formal performance acceptance. Each phase builds on the last, and each has hold points that protect both equipment and people.
The tidal context adds genuine complexity: the marine environment is harsh, the generation profile is cyclic, and the EMS must be validated against a tidal forecast model rather than a price curve. But the predictability of tidal generation is also an asset — when the commissioning is done correctly, the system can be optimised for a generation profile that is known months in advance.
Project teams that follow this framework systematically — with clear hold points, documented test results, and signed-off acceptance criteria — will deliver a BESS that performs reliably across thousands of tidal cycles.
Frequently Asked Questions
How long does BESS commissioning and testing take?
For a utility-scale tidal BESS, commissioning and testing typically takes 6-12 weeks depending on system size, site access, and grid operator witness testing requirements. Pre-commissioning and cold checks often take 2-3 weeks alone for large systems.
What is the difference between FAT and SAT in BESS commissioning?
A Factory Acceptance Test (FAT) is performed at the manufacturer’s facility before shipping, verifying that equipment meets specification in controlled conditions. A Site Acceptance Test (SAT) is performed after installation at the project site, verifying the complete integrated system. Both are standard components of a robust BESS commissioning and testing programme.
What grid codes apply to tidal BESS commissioning?
Applicable grid codes depend on the jurisdiction and point of connection. In Great Britain, the GB Grid Code and Distribution Code apply. IEC 62933 covers BESS performance and testing internationally. For tidal projects in island or microgrid configurations, additional standards such as IEC 62898 (microgrids) may apply.
What is a typical BESS round-trip efficiency?
Modern lithium-ion BESS systems typically achieve AC-to-AC round-trip efficiencies of 85-92%, accounting for PCS losses, BMS parasitic loads, and HVAC. This should be formally measured and recorded during performance acceptance testing as part of the commissioning and testing programme.
